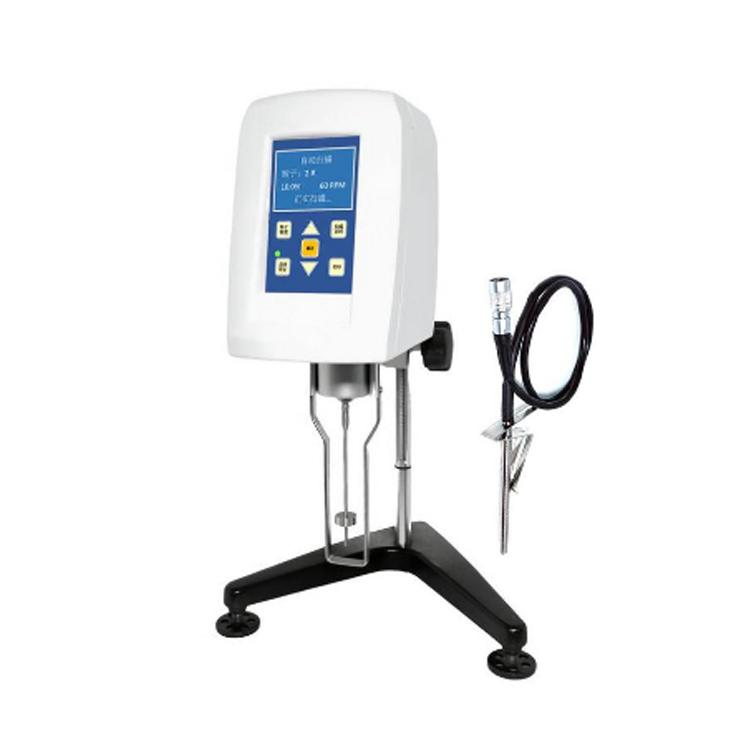

NDJ-5S Digital Viscometer
NDJ-5S digital viscometer adopts the latest international microcomputer drive technology, imported stepping motor, LCD backlight display, program setting, automatic control, with stable speed, good accuracy, easy operation, automatic scanning, error alarm and other practical functions; the screen directly displays viscosity, speed, rotor number, and percentage torque. The selected range can measure the maximum viscosity and the temperature of the measured liquid and other information. FANGRUI NDJ-5S digital viscometer uses standard silicone oil to measure and calibrate the full scale and linearity of each gear through the PC interface to ensure that the instrument has high sensitivity, high precision and high repeatability. The measured data is accurate and reliable, with excellent repeatability.
NDJ-5S digital viscometer can measure the absolute viscosity of Newtonian liquid or the apparent viscosity of non-Newtonian liquid. If the viscometer data processing software is selected, the rheological properties of non-Newtonian liquids can be analyzed.
Application
Widely used in oil, paint, coating, slurry, textile, food, medicine, adhesive, cosmetics and other fluid and semi-fluid production industries and scientific research units. With the advantages of accurate, fast, intuitive and simple measurement, the instrument has been selected by customers in various industries.
Features of digital viscometer
①. The measurement data is directly displayed on the LCD without secondary calculation.
②. Using the latest international microcomputer drive technology and imported stepping motor, the speed is accurate, stable and reliable.
③. Using professional switching power supply technology, the voltage and frequency range is wide, and the fluctuation of the power supply will not affect the measurement accuracy.
④. The whole machine is designed in one machine, which is convenient and reliable to operate.
⑤. The instrument can provide the test low viscosity option ""No. 0 rotor"" to accurately test the ultra-low viscosity value in the range of 0.1~100mpa.s.
⑥. A temperature probe can be selected to measure the temperature of the tested sample in real time.
⑦. With automatic scanning function, the instrument can automatically suggest a good combination of rotor and speed.
⑨. With RS232 interface (or USB2.0 interface), which can output data and connect external devices.
⑩. Optional data processing software can record the change of viscosity with time, rotation speed or rotor (shear rate) and temperature in real time, which provides a good tool for understanding the viscosity and rheological characteristics of non-Newtonian liquids method means.
optional
Ultra-low viscosity adapter (0# rotor)
temperature probe
Thermostat cup
Constant temperature water bath (oil bath) for viscometer
Low temperature bath for viscometer
Ultra-low viscosity adapter (0# rotor)
temperature probe
| LIST | VALUE |
|---|---|
| Display | Backlit liquid crystal display |
| Measuring range | 1~100000mPa·s |
| Rotor Specifications | 1#、2#、3#、4# |
| Rotor velocity | 6/12/30/60rpm |
| Reproducibility | ±0.5%F.S |
| Measurement accuracy | ±2% |
| Power | 110V/60Hz，220V/50Hz |
| data interface | One R232C communication interface, one temperature probe interface, and one power jack. |
| Dimensions | 300*300*450mm |
| Weight | 5kg |
| Display information | Automatic display of the selected rotor and rotational speed combination for measurement of the maximum Viscosity value |
| Automatic scan function | Viscosity of the test sample can automatically prompt the best combination of Rotor velocities |
NDJ-8S digital viscometer
NDJ-8S digital viscometer adopts the latest international microcomputer drive technology, imported stepping motor, LCD backlight display, program setting, automatic control, with stable speed, good accuracy, easy operation, automatic scanning, and error alarm and other practical functions; the screen directly displays information such as viscosity, speed, rotor number, percentage torque, the maximum viscosity that can be measured in the selected range, and the temperature of the liquid to be measured. The instrument uses standard silicone oil to measure and calibrate the full scale and linearity of each gear through the PC interface to ensure that the instrument has high sensitivity, high precision and high repeatability. The measured data is accurate and reliable, with excellent repeatability.
Features
1. The digital viscometer is designed and manufactured according to JJG-2005 standard
2. Large LCD liquid crystal display, with blue backlight function, intuitive and clear
Display information: rotor number, speed, range, viscosity, temperature, opening angle%
3. The ▲/▼ function keys are used to change the speed and select the rotor number
4. ""Rotor selection"" function key, prompting the rotor number, the cursor flashes
5. ""Speed speed setting"" function key, prompting the speed, the cursor flashes
6. ""Start, Stop"" function key to execute or terminate the current measurement program
7. ""Auto scan"" function key, for unknown samples to help users choose the appropriate rotor speed measurement
""OK"" function key to confirm the currently selected information
Applications
NDJ-8S digital viscometer is widely used in oil, paint, coating, slurry, textile, food, medicine, adhesive, cosmetics and other fluid and semi-fluid production industries and scientific research units. With the advantages of accurate, fast, intuitive and simple measurement, the instrument has been selected by customers in various industries.
optional
Ultra-low viscosity adapter (0# rotor)
temperature probe
Glass jacket cup
Constant temperature circulating bath
Standard silicone oil
software
| LIST | VALUE |
|---|---|
| Display | Backlit liquid crystal display |
| Measuring range | 1~2000000mPa·s |
| Rotor Specifications | 1#、2#、3#、4# |
| Rotor velocity | 0.3/0.6/1.5/3/6/12/30/60rpm |
| Reproducibility | ±0.5%F.S |
| Measurement accuracy | ±1% |
| Power | 110~230V 50Hz/60Hz |
| data interface | One R232C communication interface, one temperature probe interface, and one power jack. |
| Dimensions | 300*300*450mm |
| Weight | 5kg |
| Display information | Automatic display of the selected rotor and rotational speed combination for measurement of the maximum Viscosity value |
| Automatic scan function | Viscosity of the test sample can automatically prompt the best combination of Rotor velocities |
NDJ-9S digital viscometer
NDJ-9S digital viscometer adopts the latest international microcomputer drive technology, imported stepping motor, LCD backlight display, program setting, automatic control, with stable speed, good accuracy, easy operation, automatic scanning, and error alarm and other practical functions; the screen directly displays information such as viscosity, speed, rotor number, percentage torque, the maximum viscosity that can be measured in the selected range, and the temperature of the liquid to be measured. The instrument uses standard silicone oil to measure and calibrate the full scale and linearity of each gear through the PC interface to ensure that the instrument has high sensitivity, high precision and high repeatability. The measured data is accurate and reliable, with excellent repeatability.
Features
1. The digital viscometer is designed and manufactured according to JJG-2005 standard
2. Large LCD liquid crystal display, with blue backlight function, intuitive and clear
Display information: rotor number, speed, range, viscosity, temperature, opening angle%
3. The ▲/▼ function keys are used to change the speed and select the rotor number
4. ""Rotor selection"" function key, prompting the rotor number, the cursor flashes
5. ""Speed speed setting"" function key, prompting the speed, the cursor flashes
6. ""Start, Stop"" function key to execute or terminate the current measurement program
7. ""Auto scan"" function key, for unknown samples to help users choose the appropriate rotor speed measurement
""OK"" function key to confirm the currently selected information
Applications
Widely used in oil, paint, coating, slurry, textile, food, medicine, adhesive, cosmetics and other fluid and semi-fluid production industries and scientific research units. With the advantages of accurate, fast, intuitive and simple measurement, the instrument has been selected by customers in various industries.
optional
Ultra-low viscosity adapter (0# rotor)
temperature probe
Glass jacket cup
Constant temperature circulating bath
Standard silicone oil
software
| LIST | VALUE |
|---|---|
| Display | digital display |
| Measuring range | 1~100000mPa·s |
| Rotor Specifications | 1#、2#、3#、4# |
| Rotor velocity | 6/12/30/60rpm |
| Reproducibility | ±0.5%F.S |
| Measurement accuracy | ±1% |
| Power | 110~230V 50Hz/60Hz |
| data interface | One R232C communication interface, one temperature probe interface, and one power jack. |
| Display | Backlit liquid crystal display |
| Dimensions | 300*300*450mm |
| Weight | 5kg |
| Display information | Automatic display of the selected rotor and rotational speed combination for measurement of the maximum Viscosity value |
| Automatic scan function | Viscosity of the test sample can automatically prompt the best combination of Rotor velocities |
NDJ-5T touch screen digital rotational viscometer
NDJ-5T touch screen digital rotational viscometer is well integrated into touch screen technology, using a fashionable and modern high technology to measure viscosity quickly, accurately and conveniently. Powerful functions, far from comparable to previous liquid crystal display viscometers.
Self-built 30 sets of test procedures help users to quickly and accurately obtain the viscosity and related data of the sample. The 5-inch super-large color touch screen can comprehensively and vividly display various parameters and working conditions. It has obvious advantages such as many measurement parameters, rich display content, convenient operation, intuitive reading, high measurement accuracy, stable speed, strong anti-interference performance, and wide working voltage. It can completely replace the imported instruments of the same type, closely following the new technological trend of domestic (CN) viscometers.
NDJ-5T touch screen digital rotational viscometer can measure the absolute viscosity of Newtonian liquid or the apparent viscosity of non-Newtonian liquid.
Features
① Using ARM technology, built-in Linux system. The operation interface is simple and clear, and the viscosity test can be performed quickly and conveniently through the creation of test programs and data analysis;
② Viscosity measurement is accurate, and each range is automatically calibrated by computer, with high precision and small error;
③ Rich display content: In addition to viscosity, there are also temperature, the percentage of the measured value to the full scale value (graphic display), range overflow alarm, automatic scanning, the maximum measurement range under the current rotor speed combination, date, time, etc. And it can display the kinematic viscosity when the density is known, which greatly meets the different measurement requirements of users;
④ Complete functions, can measure regularly, build 30 sets of test programs, store and retrieve 30 sets of measurement data, display viscosity curves in real time, print data and curves, etc.;
⑤ Front-mounted spirit level, intuitive and convenient level adjustment;
⑥ Optional temperature probe, constant temperature bath for viscometer, constant temperature cup, printer, standard viscosity sample (standard silicone oil), etc.;
⑦ Chinese and English operating system.
Application
NDJ-5T digital rotational viscometer is widely used in various fluids that need to measure viscosity and fluids under high temperature melting. Including paints, coatings, cosmetics, inks, pulp, food, oil, starch, solvent-based adhesives, latex, biochemical products, etc., as well as industries that require high-temperature melting, such as asphalt, paraffin, hot-melt adhesives, etc.
| LIST | VALUE |
|---|---|
| Display | touch type |
| Measuring range | 1~100000mPa·s |
| Rotor Specifications | 1#、 2#、3#、4# |
| Rotor velocity | 6/12/30/60rpm |
| Reproducibility | ±0.5%F.S |
| Measurement accuracy | ±1% |
| Power | Wide voltage operation (110V/60Hz or 220V/50Hz) |
| Dimensions | 300*300*450mm |
| Weight | 4kg |
| capacity | 300~400ml |
| Display shear response/shear rate | Standard |
| Timing function | Standard |
| Viscosity Linear dispersion | Viscosity Linear dispersion in real time |
| Sports Viscosity | Display after entering the Density of the sample |
| temperature probe | Standard temperature probe interface (optional temperature probe is required) |
| Automatic scan function | Automatically scan and recommend the best combination of rotor and rotational speed |
| Save measurement results | Up to 30 sets can be stored (including rotor, speed, temperature, time, etc.) |
| Save measurement results | Save up to 30 sets of data (including Viscosity, Temperature, Rotor, Speed, Shear Rate, Shear Stress, Time, Density, Motion Viscosity, etc.) |
| data interface | Data, Linear dispersion printable (standard with print interface, optional printer required) |
| Thermostatic parts | Options (including various Viscometer Thermostats, thermostatic cups,) |
NDJ-8T Digital Display Rotational Viscometer
NDJ-8T Digital Display Rotational Viscometer is well integrated with touch screen technology, using a fashionable and modern high technology to measure viscosity quickly, accurately and conveniently. Powerful functions, far from comparable to previous liquid crystal display viscometers.
Self-built 30 sets of test procedures help users to quickly and accurately obtain the viscosity and related data of the sample. The 5-inch super-large color touch screen can comprehensively and vividly display various parameters and working conditions. It has obvious advantages such as many measurement parameters, rich display content, convenient operation, intuitive reading, high measurement accuracy, stable speed, strong anti-interference performance, and wide working voltage. It can completely replace the imported instruments of the same type, closely following the new technological trend of domestic (CN) viscometers.
NDJ-8T digital rotational viscometer can measure the absolute viscosity of Newtonian liquid or the apparent viscosity of non-Newtonian liquid.
Features
① Using ARM technology, built-in Linux system. The operation interface is simple and clear, and the viscosity test can be performed quickly and conveniently through the creation of test programs and data analysis;
② Viscosity measurement is accurate, and each range is automatically calibrated by computer, with high precision and small error;
③ Rich display content: In addition to viscosity, there are also temperature , the percentage of the measured value to the full scale value (graphic display), range overflow alarm, automatic scanning, the maximum measurement range under the current rotor speed combination, date, time, etc. And it can display the kinematic viscosity when the density is known, which greatly meets the different measurement requirements of users;
④ Complete functions, can measure regularly, build 30 sets of test programs, store and retrieve 30 sets of measurement data, display viscosity curves in real time, print data and curves, etc.;
⑤ Front-mounted spirit level, intuitive and convenient level adjustment;
⑥ Optional temperature probe, constant temperature bath for viscometer, constant temperature cup, printer, standard viscosity sample (standard silicone oil), etc.;
⑦ Chinese and English operating system.
Application
NDJ-8T digital display rotational viscometer is widely used in various fluids that need to measure viscosity and fluids under high temperature melting. Including paints, coatings, cosmetics, inks, pulp, food, oil, starch, solvent-based adhesives, latex, biochemical products, etc., as well as industries that require high-temperature melting, such as asphalt, paraffin, hot-melt adhesives, etc.
| LIST | VALUE |
|---|---|
| Display | touch type |
| Measuring range | 1~2000000mPa·s |
| Rotor Specifications | 1#、 2#、3#、4# |
| Rotor velocity | 0.3/0.6/1.5/3/6/12/30/60rpm |
| Reproducibility | ±0.5%F.S |
| Measurement accuracy | ±1% |
| Power | Wide voltage operation (110V/60Hz or 220V/50Hz) |
| Dimensions | 300*300*450mm |
| Weight | 4kg |
| capacity | 300~400ml |
| Display shear response/shear rate | Standard |
| Timing function | Standard |
| Viscosity Linear dispersion | Viscosity Linear dispersion in real time |
| Sports Viscosity | Display after entering the Density of the sample |
| temperature probe | Standard temperature probe interface (optional temperature probe is required) |
| Automatic scan function | Automatically scan and recommend the best combination of rotor and rotational speed |
| Save measurement results | Up to 30 sets can be stored (including rotor, speed, temperature, time, etc.) |
| Save measurement results | Save up to 30 sets of data (including Viscosity, Temperature, Rotor, Speed, Shear Rate, Shear Stress, Time, Density, Motion Viscosity, etc.) |
| data interface | Data, Linear dispersion printable (standard with print interface, optional printer required) |
| Thermostatic parts | Options (including various Viscometer Thermostats, thermostatic cups,) |
NDJ-9T digital rotational viscometer
NDJ-9T digital rotational viscometer is well integrated with touch screen technology, using a fashionable and modern high technology to measure viscosity quickly, accurately and conveniently. Powerful functions, far from comparable to previous liquid crystal display viscometers.
Self-built 30 sets of test procedures help users to quickly and accurately obtain the viscosity and related data of the sample. The 5-inch super-large color touch screen can comprehensively and vividly display various parameters and working conditions. It has obvious advantages such as many measurement parameters, rich display content, convenient operation, intuitive reading, high measurement accuracy, stable speed, strong anti-interference performance, and wide working voltage. It can completely replace the imported instruments of the same type, closely following the new technological trend of domestic (CN) viscometers.
NDJ-9T digital rotational viscometer can measure the absolute viscosity of Newtonian liquid or the apparent viscosity of non-Newtonian liquid.
Features
① Using ARM technology, built-in Linux system. The operation interface is simple and clear, and the viscosity test can be performed quickly and conveniently through the creation of test programs and data analysis;
② Viscosity measurement is accurate, and each range is automatically calibrated by computer, with high precision and small error;
③ Rich display content: In addition to viscosity, there are also temperature, the percentage of the measured value to the full scale value (graphic display), range overflow alarm, automatic scanning, the maximum measurement range under the current rotor speed combination, date, time, etc. And it can display the kinematic viscosity when the density is known, which greatly meets the different measurement requirements of users;
④ Complete functions, can measure regularly, build 30 sets of test programs, store and retrieve 30 sets of measurement data, display viscosity curves in real time, print data and curves, etc.;
⑤ Front-mounted spirit level, intuitive and convenient level adjustment;
⑥ Optional temperature probe, constant temperature bath for viscometer, constant temperature cup, printer, standard viscosity sample (standard silicone oil), etc.;
⑦ Chinese and English operating system.
Application
NDJ-9T digital rotational viscometer is widely used in various fluids that need to measure viscosity and fluids under high temperature melting. Including paints, coatings, cosmetics, inks, pulp, food, oil, starch, solvent-based adhesives, latex, biochemical products, etc., as well as industries that require high-temperature melting, such as asphalt, paraffin, hot-melt adhesives, etc.
| LIST | VALUE |
|---|---|
| Display | touch type |
| Measuring range | 1~100000mPa·s |
| Rotor Specifications | 1#、 2#、3#、4# |
| Rotor velocity | 6/12/30/60rpm |
| Reproducibility | ±0.5%F.S |
| Measurement accuracy | ±1% |
| Power | Wide voltage operation (110V/60Hz or 220V/50Hz) |
| Dimensions | 300*300*450mm |
| Weight | 4kg |
| capacity | 300~400ml |
| Display shear response/shear rate | Standard |
| Timing function | Standard |
| Viscosity Linear dispersion | Viscosity Linear dispersion in real time |
| Sports Viscosity | Display after entering the Density of the sample |
| temperature probe | Standard temperature probe interface (optional temperature probe is required) |
| Automatic scan function | Automatically scan and recommend the best combination of rotor and rotational speed |
| Save measurement results | Up to 30 sets can be stored (including rotor, speed, temperature, time, etc.) |
| Save measurement results | Save up to 30 sets of data (including Viscosity, Temperature, Rotor, Speed, Shear Rate, Shear Stress, Time, Density, Motion Viscosity, etc.) |
| data interface | Data, Linear dispersion printable (standard with print interface, optional printer required) |
| Thermostatic parts | Options (including various Viscometer Thermostats, thermostatic cups,) |
SNB-1 rotary viscometer
SNB-1 rotary viscometer adopts the latest international microcomputer drive technology, imported stepping motor, LCD backlight display, program setting, automatic control, and has practical functions such as stable speed, good accuracy, easy operation, and error alarm. The screen directly displays information such as viscosity, speed, rotor number, percentage torque, and temperature of the measured liquid. The instrument uses standard silicone oil to measure and calibrate the full scale and linearity of each gear through the PC interface to ensure that the instrument has high sensitivity, high precision and high repeatability. The measured data is accurate and reliable, with excellent repeatability.
main feature
① The viscosity value of the tested sample is directly displayed on the LCD without manual calculation;
② Using the latest international microcomputer drive technology, imported synchronous motor, LCD backlight display;
③ Professional switching power supply design is adopted, the working power supply range is wide, and the fluctuation of mains power does not affect the measurement accuracy;
④ Integrated machine design, easy to operate;
⑤ The digital display viscometer adopts a large-screen Chinese backlit liquid crystal display, and has an automatic scanning function for viscosity testing. A good combination of rotor and speed is recommended, and the test is convenient and accurate;
⑥ The instrument can provide the low-viscosity test option ""No. 0 rotor"", which is used to accurately test the viscosity value in the range of 0.1~100mpa.s;
⑦ The temperature probe can be selected to measure the temperature of the tested sample in real time, and the temperature measurement accuracy is 0.1°C;
⑧ RS232 interface (or optional USB2.0 interface), which can output data and connect to external devices;
In addition, standard data processing software can record the change of sample viscosity with time, rotation speed or rotor (shear rate) and temperature in real time, which provides a great help for understanding the viscosity and rheological characteristics of non-Newtonian liquids. good analytical method.
Applications
Widely used in oil, paint, coating, slurry, textile, food, medicine, adhesive, cosmetics, hot melt adhesive, asphalt and other fluid and semi-fluid production industries and scientific research units. With the advantages of accurate, fast, intuitive and simple measurement, the instrument has been selected by customers in various industries.
| LIST | VALUE |
|---|---|
| Display | Large LCD, Chinese display |
| Measuring range | 1~2000000mPa·s |
| Rotor Specifications | 1#、2#、3#、4# |
| Rotor velocity | 0.3/0.6/1.5/3/6/12/30/60rpm |
| Reproducibility | ±0.5%F.S |
| Measurement accuracy | ±1% |
| Power | 110~230V 50Hz/60Hz |
| data interface | One R232C communication interface, one temperature probe interface, and one power jack. |
| Dimensions | 300*300*450mm |
| Weight | 5kg |
| capacity | 200~350ml |
| Display information | Yes. |
| Scan function | Yes. |
| Operating language | Chinese |
SNB-1T Digital Display Rotational Viscometer
SNB-1T Digital Display Rotational Viscometer is well integrated with touch screen technology, using a fashionable and modern high technology to measure viscosity quickly, accurately and conveniently. Powerful functions, far from comparable to previous liquid crystal display viscometers.
Self-built 30 sets of test procedures help users to quickly and accurately obtain the viscosity and related data of the sample. The 5-inch super-large color touch screen can comprehensively and vividly display various parameters and working conditions. It has obvious advantages such as many measurement parameters, rich display content, convenient operation, intuitive reading, high measurement accuracy, stable speed, strong anti-interference performance, and wide working voltage. It can completely replace the imported instruments of the same type, closely following the new technological trend of domestic (CN) viscometers.
SNB-1T digital rotational viscometer can measure the absolute viscosity of Newtonian liquid or the apparent viscosity of non-Newtonian liquid.
Features
① Using ARM technology, built-in Linux system. The operation interface is simple and clear, and the viscosity test can be performed quickly and conveniently through the creation of test programs and data analysis;
② Viscosity measurement is accurate, and each range is automatically calibrated by computer, with high precision and small error;
③ Rich display content: In addition to viscosity, there are also temperature, shear rate, shear stress, the percentage of the measured value to the full scale value (graphic display), range overflow alarm, automatic scanning, the maximum measurement range under the current rotor speed combination, date, time, etc. And it can display the kinematic viscosity when the density is known, which greatly meets the different measurement requirements of users;
④ Complete functions, can measure regularly, build 30 sets of test programs, store and retrieve 30 sets of measurement data, display viscosity curves in real time, print data and curves, etc.;
⑤ Front-mounted spirit level, intuitive and convenient level adjustment;
⑥ Optional temperature probe, constant temperature bath for viscometer, constant temperature cup, printer, standard viscosity sample (standard silicone oil), etc.;
⑦ Chinese and English operating system.
Application
SNB-1T digital rotational viscometer is widely used in various fluids that need to measure viscosity and fluids under high temperature melting. Including paints, coatings, cosmetics, inks, pulp, food, oil, starch, solvent-based adhesives, latex, biochemical products, etc., as well as industries that require high-temperature melting, such as asphalt, paraffin, hot-melt adhesives, etc.
| LIST | VALUE |
|---|---|
| Display | touch type |
| Measuring range | 1~2000000mPa·s |
| Rotor Specifications | 1#、 2#、3#、4# |
| Rotor velocity | 0.3/0.6/1.5/3/6/12/30/60rpm |
| Reproducibility | ±0.5%F.S |
| Measurement accuracy | ±1% |
| Power | Wide voltage operation (110V/60Hz or 220V/50Hz) |
| Dimensions | 300*300*450mm |
| Weight | 4kg |
| capacity | 300~400ml |
| Display shear response/shear rate | Standard |
| Timing function | Standard |
| Viscosity Linear dispersion | Viscosity Linear dispersion in real time |
| Sports Viscosity | Display after entering the Density of the sample |
| temperature probe | Standard temperature probe interface (optional temperature probe is required) |
| Automatic scan function | Automatically scan and recommend the best combination of rotor and rotational speed |
| Save measurement results | Up to 30 sets can be stored (including rotor, speed, temperature, time, etc.) |
| Save measurement results | Save up to 30 sets of data (including Viscosity, Temperature, Rotor, Speed, Shear Rate, Shear Stress, Time, Density, Motion Viscosity, etc.) |
| data interface | Data, Linear dispersion printable (standard with print interface, optional printer required) |
| Thermostatic parts | Options (including various Viscometer Thermostats, thermostatic cups,) |
SNB-2 digital rotational viscometer
SNB-2 digital rotational viscometer has an automatic scanning function, which can suggest the best rotor and speed combination, and is very easy to operate. The large-screen LCD directly displays information such as viscosity, speed, percentage torque, rotor number, and temperature of the measured liquid. The measuring viscosity range of SNB-2 digital rotational viscometer is 1~6000000cp.
main feature
①The viscosity value of the tested sample is directly displayed on the LCD without manual calculation;
②Using 16-bit microcomputer processor as the core stepper motor with high subdivision drive and LCD backlight display;
③Using program-controlled motor control, the change of mains frequency does not affect the measurement accuracy;
④ The whole machine is designed in one machine, which is easy to operate;
⑤Adopt large-screen Chinese backlit liquid crystal display, with automatic scanning function for viscosity test, suggest a good combination of rotor and speed, and the test is convenient and accurate;
⑥ The instrument can provide the option of testing low viscosity ""No. 0 rotor"", which is used to accurately test the viscosity value in the range of 1~100mpa.s;
⑦The temperature probe can be selected to measure the temperature of the tested sample in real time, and the temperature measurement accuracy is 0.1°C;
⑧ RS232 interface (or optional USB2.0 interface), which can output data and connect to external devices;
⑨Standard data processing software, which can record the change of sample viscosity in real time with time, rotation speed or rotor (shear rate) and temperature, which provides a good tool for understanding the viscosity and rheological characteristics of non-Newtonian liquids analysis method.
Applications
Widely used in oil, paint, coating, slurry, textile, food, medicine, adhesive, cosmetics, hot melt adhesive, asphalt and other fluid and semi-fluid production industries and scientific research units. With the advantages of accurate, fast, intuitive and simple measurement, the instrument has been selected by customers in various industries.
| LIST | VALUE |
|---|---|
| Display | Large LCD, Chinese display |
| Measuring range | 1~6000000mPa·s |
| Rotor Specifications | 1#、2#、3#、4# |
| Rotor velocity | 0.1/0.3/0.6/1.5/3/6/12/30/60rpm |
| Reproducibility | ±0.5%F.S |
| Measurement accuracy | ±1% |
| Power | 110~230V 50Hz/60Hz |
| data interface | One R232C communication interface, one temperature probe interface, and one power jack. |
| Dimensions | 300*300*450mm |
| Weight | 5kg |
| capacity | 200~350ml |
| Display information | Yes. |
| Scan function | Yes. |
| Operating language | Chinese |
SSR series digital rotational viscometer
The SSR series digital rotational viscometer adopts a coaxial cylinder structure and uses a small sample adapter. The amount of sample required for each measurement is very small, only 7ml-13ml (No. 0 rotor is 21ml), and constant temperature water with circulation is optional. The jacket is used to control the temperature of the sample to be tested in conjunction with a constant temperature bath. The operation is very convenient and the measured value is accurate. Ideal for precious, small sample measurements.
Applications
SSR digital viscometer is widely used in fluid viscosity detection and control of oil, paint, coating, slurry, textile, food, medicine, adhesive, cosmetics, etc., to meet the viscosity test of a small number of samples.
Features
1. The level bubble is in the front, just sit and adjust the level, which is very convenient.
2. It has timing measurement function .
3. Coaxial cylinder structure .
4. The measurement accuracy of the data is two decimal places .
5. Easy and reliable operation .
6. With a small amount of sample adapter, the amount of sample required for testing is very small .
7. The viscometer is equipped with two RS232 interfaces, which can be directly connected to a miniature thermal printer and a computer .
Optional
1. Enhanced Ultra Low Viscosity Adapter ULR (Spindle 0)
-
Designed for low viscosity fluid measurement
-
Jacketed and non-jacketed specifications are available
-
The lowest detection limit is 1cP, the range depends on the viscometer used
-
Model stainless steel for easy cleaning
-
Can withstand the working temperature range -40 ℃ -200 ℃
2. DC0506W type viscometer dedicated low temperature constant temperature bath
Comparison of SSR parameters
| Instrument model | Rotating speed | rotor | Range | sample size |
| LV-SSR | 0.3~100 | 18#, 25#, 31#, 34# | 10,000-200,000 | 7~11 |
| RV-SSR | 0.5~100 | 21#, 27#, 28#, 29# | 6.4-2M | 7.8~11.5 |
| HA-SSR | 12.8~4M | |||
| HB-SSR | 51.2~16M | |||
| *Measuring range M=1000000; unit: r/min, mPa·s, ml | ||||
| Other parameters | ||||
| Measurement error | ±2% (Newtonian liquid) | |||
| Repeat error | ±1% (Newtonian liquid) | |||
| Output Interface | There are two RS232 interfaces, which can be connected to printers and computers | |||
| Temperature probe interface | Standard | |||
| Dimensions | 300×300×450mm |
| LIST | VALUE |
|---|---|
| Display | digital display |
| Measuring range | 3~200000mPa·s |
| Rotor Specifications | 18 #, 25 #, 31 #, 34 #(optional ULR0 rotor) |
| Rotor velocity | 0.3/0.6/1.5/3/6/10/12/15/20/25/30/40/50/60/70/80/90/100 A total of 18 kinds |
| Reproducibility | ±1%F.S |
| Measurement accuracy | ±2% |
| capacity | 7~11ml |
| data interface | There are two RS232 interfaces, which can connect printers and computers |
| Dimensions | 300*300*450mm |
| Operating language | Chinese |
| Temperature probe interface | Standard |
| Measuringflask depth | About 70mm |
| Measuringflask outer diameter | 28mm |
| ULR (No. 0 rotor) range | 1~1000mPa·s |
| No. 18 rotor range | 3~10000mPa·s |
| No. 25 rotor range | 4.8~ 1.6 million mPa·s |
| No. 31 rotor range | 30~ 100,000 mPa·s |
| No. 34 rotor range | 600,000~ 200,000 mPa·s |
| ULR (No. 0 rotor) sample volume | 21ml |
| No. 18 rotor sample volume | 7ml |
| No. 25 rotor sample volume | 9ml |
| No. 31 rotor sample volume | 10.5ml |
| No. 34 rotor sample volume | 11ml |
NDJ-1C Brookfield high-temperature rotational viscometer
NDJ-1C Brookfield high-temperature rotational viscometer is a high-temperature rotational digital viscometer, which can measure the dynamic viscosity of substances that are solid at room temperature and melt into fluid after being heated at high temperature (such as hot melt adhesive, asphalt, paraffin, polyethylene, etc.) . With the advantages of accurate, fast, intuitive and simple measurement, the instrument is recommended by the adhesive industry standard compilation and selected by customers in related industries.
Standards
Determination of viscosity of GB/T2794-1995 adhesives, determination of melt viscosity of HG/T3660-1999T hot melt adhesives, test requirements of T0625-2011 in JTG E20-2011 Test Regulations for Asphalt and Asphalt Mixtures in Highway Engineering.
| LIST | VALUE |
|---|---|
| Display | LCD |
| Measuring range | 10~200000mPa·s |
| Rotor velocity | 0.5/1/2/5/10/20/50rpm |
| Reproducibility | ±0.5%F.S |
| Measurement accuracy | ±2% |
| Power | 220V / 50Hz |
| Standards | GB/T2794-1995；HG/T3660-1999T；JTG E20-2011 |
| Dimensions | 300*300*450mm |
| Weight | 10kg |
| capacity | 15~25ml |
| Temperature range | RT+~250°C |
| temperature accuracy | 0.1℃ |
| Timing function | Flexible setting according to sample conditions |
| Viscosity Linear dispersion | without |
| Save measurement results | without |
| data interface | Data, Linear dispersion printable (standard with print interface, optional printer required) |
LVDV-1T rotational viscometer
The LVDV-1T rotational viscometer is well integrated into the touch screen technology, and uses a fashionable and modern high technology to measure viscosity quickly, accurately and conveniently. Powerful functions, far from comparable to previous liquid crystal display viscometers.
Self-built 30 sets of test procedures help users to quickly and accurately obtain the viscosity and related data of the sample. The 5-inch super-large color touch screen can comprehensively and vividly display various parameters and working conditions. It has obvious advantages such as many measurement parameters, rich display content, convenient operation, intuitive reading, high measurement accuracy, stable speed, strong anti-interference performance, and wide working voltage. It can completely replace the imported instruments of the same type, closely following the new technological trend of domestic (CN) viscometers.
LVDV-1T rotational viscometer can measure the absolute viscosity of Newtonian liquid or the apparent viscosity of non-Newtonian liquid.
Features
① Using ARM technology, built-in Linux system. The operation interface is simple and clear, and the viscosity test can be performed quickly and conveniently through the creation of test programs and data analysis;
② Viscosity measurement is accurate, and each range is automatically calibrated by computer, with high precision and small error;
③ Rich display content: In addition to viscosity, there are also temperature, shear rate, shear stress, the percentage of the measured value to the full scale value (graphic display), range overflow alarm, automatic scanning, the maximum measurement range under the current rotor speed combination, date, time, etc. And it can display the kinematic viscosity when the density is known, which greatly meets the different measurement requirements of users;
④ Complete functions, can measure regularly, build 30 sets of test programs, store and retrieve 30 sets of measurement data, display viscosity curves in real time, print data and curves, etc.;
⑤ Front-mounted spirit level, intuitive and convenient level adjustment;
⑥ Optional temperature probe, constant temperature bath for viscometer, constant temperature cup, printer, standard viscosity sample (standard silicone oil), etc.;
⑦ Chinese and English operating system.
Application
LVDV-1T rotational viscometer is widely used in various fluids that need to measure viscosity and fluids under high temperature melting. Including paints, coatings, cosmetics, inks, pulp, food, oil, starch, solvent-based adhesives, latex, biochemical products, etc., as well as industries that require high-temperature melting, such as asphalt, paraffin, hot-melt adhesives, etc.
| LIST | VALUE |
|---|---|
| Display | touch type |
| Measuring range | 1~2000000mPa·s |
| Rotor Specifications | 1#、 2#、3#、4# |
| Rotor velocity | 0.3/0.5/0.6/1/1.5/2/2.5/3/4/5/6/10/12/20/30/50/60/100rpm |
| Reproducibility | ±0.5%F.S |
| Measurement accuracy | ±1% |
| Power | Wide voltage operation (110V/60Hz or 220V/50Hz) |
| Dimensions | 300*300*450mm |
| Weight | 4kg |
| capacity | 300~400ml |
| Display shear response/shear rate | Standard |
| Timing function | Standard |
| Viscosity Linear dispersion | Viscosity Linear dispersion in real time |
| Sports Viscosity | Display after entering the Density of the sample |
| temperature probe | Standard temperature probe interface (optional temperature probe is required) |
| Automatic scan function | Automatically scan and recommend the best combination of rotor and rotational speed |
| Save measurement results | Up to 30 sets can be stored (including rotor, speed, temperature, time, etc.) |
| Save measurement results | Save up to 30 sets of data (including Viscosity, Temperature, Rotor, Speed, Shear Rate, Shear Stress, Time, Density, Motion Viscosity, etc.) |
| data interface | Data, Linear dispersion printable (standard with print interface, optional printer required) |
| Thermostatic parts | Options (including various Viscometer Thermostats, thermostatic cups,) |
RVDV-1T Digital Display Rotational Viscometer
RVDV-1T Digital Display Rotational Viscometer is well integrated with touch screen technology, using a fashionable and modern high technology to measure viscosity quickly, accurately and conveniently. Powerful functions, far from comparable to previous liquid crystal display viscometers. Self-built 30 sets of test programs help users quickly and accurately establish viscosity measurement conditions; the 5-inch super-large color touch screen can comprehensively and visually display various parameters and working conditions. It has many measurement parameters and rich display content.
Features
① Using ARM technology, built-in Linux system. The operation interface is simple and clear, and the viscosity test can be performed quickly and conveniently through the creation of test programs and data analysis;
② Accurate viscosity measurement: each range is automatically calibrated by computer, with high precision and small error;
③ Rich display content: In addition to viscosity (dynamic viscosity and kinematic viscosity), there are also temperature, shear rate, shear stress, the percentage of the measured value to the full scale value (graphic display), range overflow alarm, automatic scanning, current rotor speed Viscosity measurement range, date, time, etc. under combination. And it can display the kinematic viscosity when the density is known, which can meet the different measurement requirements of users;
④ Complete functions: the RS232C interface can be connected to a computer, and can be used for timing measurement, self-built 30 sets of test programs, access to 30 sets of measurement data, real-time display of viscosity curves, printing data and curves, etc.;
⑤ Front level meter: intuitive and convenient level adjustment;
⑥ Stepless speed regulation: 0.3-100 rpm, a total of 998 speeds
⑦ Display the curve of shear rate versus viscosity: the range of shear rate can be set and displayed on the computer in real time; the curve of time versus viscosity can also be displayed
⑧ Optional Pt100 temperature probe: wide temperature measurement range, from -20 to 300℃, temperature measurement accuracy 0.1℃;
⑨ Abundant optional accessories: constant temperature bath for viscometer, constant temperature cup, printer, standard viscosity sample (standard silicone oil), etc.;
⑩ Chinese and English operating system.
Application
RVDV-1T digital display rotational viscometer is widely used in paints, coatings, cosmetics, inks, pulp, food, oil, starch, solvent-based adhesives, latex, biochemical products, etc. , Paraffin, hot melt adhesive and other industries.
| LIST | VALUE |
|---|---|
| Display | touch type |
| Measuring range | 100~13000000mPa·s |
| Rotor Specifications | R2#、 R3#、R4#、R5#、R6#、R7# |
| Rotor velocity | 0.3~100rpm |
| Reproducibility | ±0.5%F.S |
| Measurement accuracy | ±1% |
| Power | Wide voltage operation (110V/60Hz or 220V/50Hz) |
| data interface | RS232 |
| Dimensions | 300*300*450mm |
| Weight | 4kg |
| capacity | 500ml |
| Display shear response/shear rate | Standard |
| Timing function | Standard |
| Viscosity Linear dispersion | Viscosity Linear dispersion in real time |
| Sports Viscosity | Display after entering the Density of the sample |
| temperature probe | Standard temperature probe interface (optional temperature probe is required) |
| Automatic scan function | Automatically scan and recommend the best combination of rotor and rotational speed |
| Save measurement results | Up to 30 sets can be stored (including rotor, speed, temperature, time, etc.) |
| Save measurement results | Save up to 30 sets of data (including Viscosity, Temperature, Rotor, Speed, Shear Rate, Shear Stress, Time, Density, Motion Viscosity, etc.) |
| data interface | Data, Linear dispersion printable (standard with print interface, optional printer required) |
| Thermostatic parts | Options (including various Viscometer Thermostats, thermostatic cups,) |
| Speed control method | Continuously variable speed, a total of 998 speed steps are available |
HADV-1T Digital Display Rotational Viscometer
HADV-1T Digital Display Rotational Viscometer is well integrated with touch screen technology, using a fashionable and modern high technology to measure viscosity quickly, accurately and conveniently. Powerful functions, far from comparable to previous liquid crystal display viscometers. Self-built 30 sets of test programs help users quickly and accurately establish viscosity measurement conditions; the 5-inch super-large color touch screen can comprehensively and visually display various parameters and working conditions. It has many measurement parameters and rich display content.
Features
① Using ARM technology, built-in Linux system. The operation interface is simple and clear, and the viscosity test can be performed quickly and conveniently through the creation of test programs and data analysis;
② Accurate viscosity measurement: each range is automatically calibrated by computer, with high precision and small error;
③ Rich display content: In addition to viscosity (dynamic viscosity and kinematic viscosity), there are also temperature, shear rate, shear stress, the percentage of the measured value to the full scale value (graphic display), range overflow alarm, automatic scanning, current rotor speed Viscosity measurement range, date, time, etc. under combination. And it can display the kinematic viscosity when the density is known, which can meet the different measurement requirements of users;
④ Complete functions: the RS232C interface can be connected to a computer, and can be used for timing measurement, self-built 30 sets of test programs, access to 30 sets of measurement data, real-time display of viscosity curves, printing data and curves, etc.;
⑤ Front level meter: intuitive and convenient level adjustment;
⑥ Stepless speed regulation: 0.3-100 rpm, a total of 998 speeds
⑦ Display the curve of shear rate versus viscosity: the range of shear rate can be set and displayed on the computer in real time; the curve of time versus viscosity can also be displayed
⑧ Optional Pt100 temperature probe: wide temperature measurement range, from -20 to 300℃, temperature measurement accuracy 0.1℃;
⑨ Abundant optional accessories: constant temperature bath for viscometer, constant temperature cup, printer, standard viscosity sample (standard silicone oil), etc.;
⑩ Chinese and English operating system.
Application
HADV-1T digital rotational viscometer is widely used in paints, coatings, cosmetics, inks, pulp, food, oil, starch, solvent-based adhesives, latex, biochemical products, etc., and those that require high temperature melting, such as asphalt , Paraffin, hot melt adhesive and other industries.
| LIST | VALUE |
|---|---|
| Display | 5-Inch color touch screen |
| Measuring range | 200~26000000mPa·s |
| Rotor Specifications | R2#、 R3#、R4#、R5#、R6#、R7# |
| Rotor velocity | 0.3~100rpm |
| Reproducibility | ±0.5%F.S |
| Measurement accuracy | ±1% |
| Power | Wide voltage operation (110V/60Hz or 220V/50Hz) |
| data interface | RS232 |
| Dimensions | 300*300*450mm |
| Weight | 4kg |
| capacity | 500ml |
| Display shear response/shear rate | Standard |
| Timing function | Standard |
| Viscosity Linear dispersion | Viscosity Linear dispersion in real time |
| Sports Viscosity | Display after entering the Density of the sample |
| temperature probe | Standard temperature probe interface (optional temperature probe is required) |
| Automatic scan function | Automatically scan and recommend the best combination of rotor and rotational speed |
| Save measurement results | Up to 30 sets can be stored (including rotor, speed, temperature, time, etc.) |
| Save measurement results | Save up to 30 sets of data (including Viscosity, Temperature, Rotor, Speed, Shear Rate, Shear Stress, Time, Density, Motion Viscosity, etc.) |
| data interface | Data, Linear dispersion printable (standard with print interface, optional printer required) |
| Thermostatic parts | Options (including various Viscometer Thermostats, thermostatic cups,) |
| Speed control method | Continuously variable speed, a total of 998 speed steps are available |
HBDV-1T Digital Display Rotational Viscometer
HBDV-1T Digital Display Rotational Viscometer is well integrated with touch screen technology, using a fashionable and modern high technology to measure viscosity quickly, accurately and conveniently. Powerful functions, far from comparable to previous liquid crystal display viscometers. Self-built 30 sets of test programs help users quickly and accurately establish viscosity measurement conditions; the 5-inch super-large color touch screen can comprehensively and visually display various parameters and working conditions. It has many measurement parameters and rich display content.
Features
① Using ARM technology, built-in Linux system. The operation interface is simple and clear, and the viscosity test can be performed quickly and conveniently through the creation of test programs and data analysis;
② Accurate viscosity measurement: each range is automatically calibrated by computer, with high precision and small error;
③ Rich display content: In addition to viscosity (dynamic viscosity and kinematic viscosity), there are also temperature, shear rate, shear stress, the percentage of the measured value to the full scale value (graphic display), range overflow alarm, automatic scanning, current rotor speed Viscosity measurement range, date, time, etc. under combination. And it can display the kinematic viscosity when the density is known, which can meet the different measurement requirements of users;
④ Complete functions: the RS232C interface can be connected to a computer, and can be used for timing measurement, self-built 30 sets of test programs, access to 30 sets of measurement data, real-time display of viscosity curves, printing data and curves, etc.;
⑤ Front level meter: intuitive and convenient level adjustment;
⑥ Stepless speed regulation: 0.3-100 rpm, a total of 998 speeds
⑦ Display the curve of shear rate versus viscosity: the range of shear rate can be set and displayed on the computer in real time; the curve of time versus viscosity can also be displayed
⑧ Optional Pt100 temperature probe: wide temperature measurement range, from -20 to 300℃, temperature measurement accuracy 0.1℃;
⑨ Abundant optional accessories: constant temperature bath for viscometer, constant temperature cup, printer, standard viscosity sample (standard silicone oil), etc.;
⑩ Chinese and English operating system.
Application
HBDV-1T digital rotational viscometer is widely used in paints, coatings, cosmetics, inks, pulp, food, oil, starch, solvent-based adhesives, latex, biochemical products, etc., as well as those that require high temperature melting, such as asphalt , Paraffin, hot melt adhesive and other industries.
| LIST | VALUE |
|---|---|
| Display | 5-Inch color touch screen |
| Measuring range | 800~104000000mPa·s |
| Rotor Specifications | R2#、 R3#、R4#、R5#、R6#、R7# |
| Rotor velocity | 0.3~100rpm |
| Reproducibility | ±0.5%F.S |
| Measurement accuracy | ±1% |
| Power | Wide voltage operation (110V/60Hz or 220V/50Hz) |
| data interface | RS232 |
| Dimensions | 300*300*450mm |
| Weight | 4kg |
| capacity | 500ml |
| Display shear response/shear rate | Standard |
| Timing function | Standard |
| Viscosity Linear dispersion | Viscosity Linear dispersion in real time |
| Sports Viscosity | Display after entering the Density of the sample |
| temperature probe | Standard temperature probe interface (optional temperature probe is required) |
| Automatic scan function | Automatically scan and recommend the best combination of rotor and rotational speed |
| Save measurement results | Up to 30 sets can be stored (including rotor, speed, temperature, time, etc.) |
| Save measurement results | Save up to 30 sets of data (including Viscosity, Temperature, Rotor, Speed, Shear Rate, Shear Stress, Time, Density, Motion Viscosity, etc.) |
| data interface | Data, Linear dispersion printable (standard with print interface, optional printer required) |
| Thermostatic parts | Options (including various Viscometer Thermostats, thermostatic cups,) |
| Speed control method | Continuously variable speed, a total of 998 speed steps are available |
LVDV-2T rotational viscometer
The machine is widely used in fluid viscosity detection and control of oil, paint, coating, slurry, textile, food, medicine, adhesive, cosmetics, etc.
main feature
①Adopt ARM technology, built-in Linux system. The operation interface is simple and clear, and the viscosity test can be performed quickly and conveniently through the creation of test programs and data analysis;
② Viscosity measurement is accurate, and each range is automatically calibrated by computer, with high precision and small error;
③ Rich display content: In addition to viscosity, there are also temperature, shear rate, shear stress, the percentage of the measured value to the full scale value (graphic display), range overflow alarm, automatic scanning, viscosity measurement range under the current rotor speed combination, date, time, etc. And it can display the kinematic viscosity when the density is known, which greatly meets the different measurement requirements of users;
④Complete functions, including regular measurement, self-built 30 sets of test programs, access to 30 sets of measurement data, real-time display of viscosity curves, printing data and curves, etc.;
⑤ Front level meter, intuitive and convenient level adjustment;
⑥ Optional temperature probe, constant temperature bath for viscometer, constant temperature cup, printer, standard viscosity sample (standard silicone oil), etc.;
⑦Chinese and English operating system.
| LIST | VALUE |
|---|---|
| Display | touch type |
| Measuring range | 1~6000000mPa·s |
| Rotor Specifications | L1#、L2#、L3#、L4# |
| Rotor velocity | 0.1~200rpm |
| Test sample dosage | 300mL~ 400mL (depending on the rotor used) |
| Accuracy | ±1%FS |
| Data export | The machine comes with a U disk interface, which can directly export the data into EXCEL data format |
| Automatic scan function | Automatically scan and recommend the best combination of rotor and rotational speed |
| Display information | Viscosity, temperature, torque, rotational speed, rotor number, shear stress, shear rate |
| Auto Display Motion Viscosity | Density to input sample |
| Save measurement results | Save up to 30 sets of data |
| Viscosity Linear dispersion | Viscosity Linear dispersion in real time |
| Power | Wide voltage operation (110v- 230V) |
RVDV-2T rotational viscometer
RVDV-2T rotational viscometer is well integrated with touch screen technology, using a fashionable and modern high technology to measure viscosity quickly, accurately and conveniently. Powerful functions, far from comparable to previous liquid crystal display viscometers. Self-built 30 sets of test programs help users quickly and accurately establish viscosity measurement conditions; the 5-inch super-large color touch screen can comprehensively and visually display various parameters and working conditions. It has many measurement parameters and rich display content.
Features
① Using ARM technology, built-in Linux system. The operation interface is simple and clear, and the viscosity test can be performed quickly and conveniently through the creation of test programs and data analysis;
② Accurate viscosity measurement: each range is automatically calibrated by computer, with high precision and small error;
③ Rich display content: In addition to viscosity (dynamic viscosity and kinematic viscosity), there are also temperature, shear rate, shear stress, the percentage of the measured value to the full scale value (graphic display), range overflow alarm, automatic scanning, current rotor speed Viscosity measurement range, date, time, etc. under combination. And it can display the kinematic viscosity when the density is known, which can meet the different measurement requirements of users;
④ Complete functions: the RS232C interface can be connected to a computer, and can be used for timing measurement, self-built 30 sets of test programs, access to 30 sets of measurement data, real-time display of viscosity curves, printing data and curves, etc.;
⑤ Front level meter: intuitive and convenient level adjustment;
⑥ Stepless speed regulation: 0.1-200 rpm, a total of 2000 speeds;
⑦ Display the curve of shear rate versus viscosity: the range of shear rate can be set and displayed on the computer in real time; the curve of time versus viscosity can also be displayed;
⑧ Optional Pt100 temperature probe: wide temperature measurement range, from -20 to 300℃, temperature measurement accuracy 0.1℃;
⑨ Abundant optional accessories: constant temperature bath for viscometer, constant temperature cup, printer, standard viscosity sample (standard silicone oil), etc.;
⑩ Chinese and English operating system.
Application
RVDV-2T rotational viscometer is widely used in paints, coatings, cosmetics, inks, pulp, food, oil, starch, solvent-based adhesives, latex, biochemical products, etc. , hot melt adhesive and other industries.
| LIST | VALUE |
|---|---|
| Display | 5-Inch color touch screen |
| Measuring range | 100~40000000mPa·s |
| Rotor Specifications | R2#、 R3#、R4#、R5#、R6#、R7# |
| Rotor velocity | 0.1~200rpm |
| Reproducibility | ±0.5%F.S |
| Measurement accuracy | ±1% |
| Power | Wide voltage operation (110V/60Hz or 220V/50Hz) |
| data interface | RS232 |
| Dimensions | 300*300*450mm |
| Weight | 4kg |
| capacity | 500ml |
| Display shear response/shear rate | Standard |
| Timing function | Standard |
| Viscosity Linear dispersion | Viscosity Linear dispersion in real time |
| Sports Viscosity | Display after entering the Density of the sample |
| temperature probe | Standard temperature probe interface (optional temperature probe is required) |
| Automatic scan function | Automatically scan and recommend the best combination of rotor and rotational speed |
| Save measurement results | Up to 30 sets can be stored (including rotor, speed, temperature, time, etc.) |
| Save measurement results | Save up to 30 sets of data (including Viscosity, Temperature, Rotor, Speed, Shear Rate, Shear Stress, Time, Density, Motion Viscosity, etc.) |
| data interface | Data, Linear dispersion printable (standard with print interface, optional printer required) |
| Thermostatic parts | Options (including various Viscometer Thermostats, thermostatic cups,) |
| Speed control method | Continuously variable speed, a total of 2000 speed steps can be selected |
HADV-2T digital display rotational viscometer
HADV-2T digital display rotational viscometer is well integrated with touch screen technology, using a fashionable and modern high technology to measure viscosity quickly, accurately and conveniently. Powerful functions, far from comparable to previous liquid crystal display viscometers. Self-built 30 sets of test programs help users quickly and accurately establish viscosity measurement conditions; the 5-inch super-large color touch screen can comprehensively and visually display various parameters and working conditions. It has many measurement parameters and rich display content.
Features
① Using ARM technology, built-in Linux system. The operation interface is simple and clear, and the viscosity test can be performed quickly and conveniently through the creation of test programs and data analysis;
② Accurate viscosity measurement: each range is automatically calibrated by computer, with high precision and small error;
③ Rich display content: In addition to viscosity (dynamic viscosity and kinematic viscosity), there are also temperature, shear rate, shear stress, the percentage of the measured value to the full scale value (graphic display), range overflow alarm, automatic scanning, current rotor speed Viscosity measurement range, date, time, etc. under combination. And it can display the kinematic viscosity when the density is known, which can meet the different measurement requirements of users;
④ Complete functions: the RS232C interface can be connected to a computer, and can be used for timing measurement, self-built 30 sets of test programs, access to 30 sets of measurement data, real-time display of viscosity curves, printing data and curves, etc.;
⑤ Front level meter: intuitive and convenient level adjustment;
⑥ Stepless speed regulation: 0.1-200 rpm, a total of 2000 speeds;
⑦ Display the curve of shear rate versus viscosity: the range of shear rate can be set and displayed on the computer in real time; the curve of time versus viscosity can also be displayed;
⑧ Optional Pt100 temperature probe: wide temperature measurement range, from -20 to 300℃, temperature measurement accuracy 0.1℃;
⑨ Abundant optional accessories: constant temperature bath for viscometer, constant temperature cup, printer, standard viscosity sample (standard silicone oil), etc.;
⑩ Chinese and English operating system.
Application
HADV-2T digital rotational viscometer is widely used in paints, coatings, cosmetics, inks, pulp, food, oil, starch, solvent-based adhesives, latex, biochemical products, etc. , Paraffin, hot melt adhesive and other industries.
| LIST | VALUE |
|---|---|
| Display | touch type |
| Measuring range | 200~80000000mPa·s |
| Rotor Specifications | R2#、 R3#、R4#、R5#、R6#、R7# |
| Rotor velocity | 0.1~200rpm |
| Reproducibility | ±0.5%F.S |
| Measurement accuracy | ±1% |
| Power | Wide voltage operation (110V/60Hz or 220V/50Hz) |
| data interface | RS232 |
| Dimensions | 300*300*450mm |
| Weight | 4kg |
| capacity | 500ml |
| Display shear response/shear rate | Standard |
| Timing function | Standard |
| Viscosity Linear dispersion | Viscosity Linear dispersion in real time |
| Sports Viscosity | Display after entering the Density of the sample |
| temperature probe | Standard temperature probe interface (optional temperature probe is required) |
| Automatic scan function | Automatically scan and recommend the best combination of rotor and rotational speed |
| Save measurement results | Up to 30 sets can be stored (including rotor, speed, temperature, time, etc.) |
| Save measurement results | Save up to 30 sets of data (including Viscosity, Temperature, Rotor, Speed, Shear Rate, Shear Stress, Time, Density, Motion Viscosity, etc.) |
| data interface | Data, Linear dispersion printable (standard with print interface, optional printer required) |
| Thermostatic parts | Options (including various Viscometer Thermostats, thermostatic cups,) |
| Speed control method | Continuously variable speed, a total of 2000 speed steps can be selected |
HBDV-2T rotary viscometer
HBDV-2T rotary viscometer is well integrated with touch screen technology, using a fashionable and modern high technology to measure viscosity quickly, accurately and conveniently. Powerful functions, far from comparable to previous liquid crystal display viscometers. Self-built 30 sets of test programs help users quickly and accurately establish viscosity measurement conditions; the 5-inch super-large color touch screen can comprehensively and visually display various parameters and working conditions. It has many measurement parameters and rich display content.
Features
① Using ARM technology, built-in Linux system. The operation interface is simple and clear, and the viscosity test can be performed quickly and conveniently through the creation of test programs and data analysis;
② Accurate viscosity measurement: each range is automatically calibrated by computer, with high precision and small error;
③ Rich display content: In addition to viscosity (dynamic viscosity and kinematic viscosity), there are also temperature, shear rate, shear stress, the percentage of the measured value to the full scale value (graphic display), range overflow alarm, automatic scanning, current rotor speed Viscosity measurement range, date, time, etc. under combination. And it can display the kinematic viscosity when the density is known, which can meet the different measurement requirements of users;
④ Complete functions: the RS232C interface can be connected to a computer, and can be used for timing measurement, self-built 30 sets of test programs, access to 30 sets of measurement data, real-time display of viscosity curves, printing data and curves, etc.;
⑤ Front level meter: intuitive and convenient level adjustment;
⑥ Stepless speed regulation: 0.1-200 rpm, a total of 2000 speeds;
⑦ Display the curve of shear rate versus viscosity: the range of shear rate can be set and displayed on the computer in real time; the curve of time versus viscosity can also be displayed;
⑧ Optional Pt100 temperature probe: wide temperature measurement range, from -20 to 300℃, temperature measurement accuracy 0.1℃;
⑨ Abundant optional accessories: constant temperature bath for viscometer, constant temperature cup, printer, standard viscosity sample (standard silicone oil), etc.;
⑩ Chinese and English operating system.
Application
HBDV-2T rotary viscometer is widely used in paints, coatings, cosmetics, inks, pulp, food, oil, starch, solvent-based adhesives, latex, biochemical products, etc., as well as materials that require high temperature melting, such as asphalt, Paraffin, hot melt adhesive and other industries.
| LIST | VALUE |
|---|---|
| Display | touch type |
| Measuring range | 800~320000000mPa·s |
| Rotor Specifications | R2#、 R3#、R4#、R5#、R6#、R7# |
| Rotor velocity | 0.1~200rpm |
| Reproducibility | ±0.5%F.S |
| Measurement accuracy | ±1% |
| Power | Wide voltage operation (110V/60Hz or 220V/50Hz) |
| data interface | RS232 |
| Dimensions | 300*300*450mm |
| Weight | 4kg |
| capacity | 500ml |
| Display shear response/shear rate | Standard |
| Timing function | Standard |
| Viscosity Linear dispersion | Viscosity Linear dispersion in real time |
| Sports Viscosity | Display after entering the Density of the sample |
| temperature probe | Standard temperature probe interface (optional temperature probe is required) |
| Automatic scan function | Automatically scan and recommend the best combination of rotor and rotational speed |
| Save measurement results | Up to 30 sets can be stored (including rotor, speed, temperature, time, etc.) |
| Save measurement results | Save up to 30 sets of data (including Viscosity, Temperature, Rotor, Speed, Shear Rate, Shear Stress, Time, Density, Motion Viscosity, etc.) |
| data interface | Data, Linear dispersion printable (standard with print interface, optional printer required) |
| Thermostatic parts | Options (including various Viscometer Thermostats, thermostatic cups,) |
| Speed control method | Continuously variable speed, a total of 2000 speed steps can be selected |
