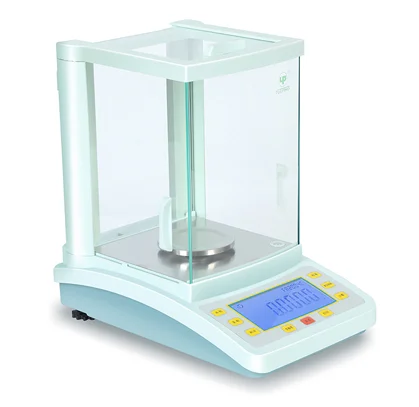

FA/JA-C type automatic internal calibration electronic analytical balance
FA/JA-C type automatic internal calibration electronic analytical balance is a new self-developed self-developed balance on the basis of FA/B series products based on the convenience of users after the launch of FA-B series products. product. A professional and reliable automatic weighting mechanism is adopted inside, which enables the balance to have a fully automatic built-in weight calibration function, thereby greatly improving the performance and weighing accuracy of the balance. It is in a professional position in the domestic (CN) balance industry.
features
● Humanized design, novel structure, five-sided fully transparent glass windshield. The new generation of electromagnetic balance weighing sensor is adopted to ensure the high precision of the product. With fully automatic fault detection, linear four-point calibration, overload protection and other applications.
● The ultra-large digital integrated circuit board adopted is the guarantee of product precision. The double-cam mechanism is used to realize the automatic internal calibration function, which makes the product more stable and fast.
● The balance has applications such as "warming up", "calibrating", screen saver, etc.
● Large LCD display with backlight. Make the operator's vision softer and clearer.
Function
● It has multiple functions such as piece counting, unit conversion (metric carat, gold ounce, etc.), stability, full-scale tare, zero point tracking, etc., and the operation is more convenient and reliable.
● Internal automatic calibration makes the operation of the balance easier and quicker, and the performance is stable and accurate.
● Built-in RS232C output interface, which can be directly connected to external devices such as computers and printers.
● Built-in under-weight hook.
model
| model | Weighing range | Readability Accuracy | Pan size | net weight | Dimensions | work space height | Calibration method |
| FA604C | 0-60g | 0.1mg | Φ90mm | 6.8kg | 350×215×340mm | 240mm | internal calibration |
| FA1004C | 0-100g | 0.1mg | Φ90mm | 6.8kg | 350×215×340mm | 240mm | internal calibration |
| FA1204C | 0-120g | 0.1mg | Φ90mm | 6.8kg | 350×215×340mm | 240mm | internal calibration |
| FA1604C | 0-160g | 0.1mg | Φ90mm | 6.8kg | 350×215×340mm | 240mm | internal calibration |
| FA2004C | 0-200g | 0.1mg | Φ90mm | 6.8kg | 350×215×340mm | 240mm | internal calibration |
| FA2204C | 0-220g | 0.1mg | Φ90mm | 6.8kg | 350×215×340mm | 240mm | internal calibration |
| JA1003C | 0-100g | 1mg | Φ90mm | 6.8kg | 350×215×340mm | 240mm | internal calibration |
| JA2003C | 0-200g | 1mg | Φ90mm | 6.8kg | 350×215×340mm | 240mm | internal calibration |
| JA3003C | 0-300g | 1mg | Φ90mm | 6.8kg | 350×215×340mm | 240mm | internal calibration |
FA-B Series Electronic Analytical Balance
FA-B series electronic analytical balance is developed by using electromagnetic balance sensor technology. It has the characteristics of high precision and strong environmental adaptability. It also has functions such as linear four-point calibration, counting function and multiple unit conversions. Changing the traditional sorting component circuit board into a super-large digital integrated type makes the performance of this series of electronic balances more stable and the response faster.
This series of electronic balances is also equipped with a standard RS232C data interface, which can be connected with a computer, printer and other equipment. It can be widely used in medical research institutions, schools, enterprises and institutions, highway construction and defense departments, etc. It is a satisfactory instrument for accurate measurement.
Features
● Humanized design, novel structure, five-sided fully transparent glass windshield. The new generation of electromagnetic balance weighing sensor is adopted to ensure the high precision of the product. With fully automatic fault detection, linear four-point calibration, overload protection and other applications.
● Large LCD display with backlight. Make the operator's vision softer and clearer.
Function:
● It has multiple functions such as piece counting, unit conversion (metric carat, gold ounce, etc.), stability, full-scale tare, zero point tracking, etc., and the operation is more convenient and reliable.
● Built-in RS232C output interface, which can be directly connected to external devices such as computers and printers.
● Built-in under-weight hook.
Specifications
| model | Weighing range | Readability Accuracy | Pan size | net weight | Dimensions | Package size | work space height | Calibration method |
|---|---|---|---|---|---|---|---|---|
| FA504B | 0-50g | 0.1mg | Φ80mm | 6.8kg | 350×215×340mm | 480×375×515mm | 240mm | external calibration |
| FA604B | 0-60g | 0.1mg | Φ80mm | 6.8kg | 350×215×340mm | 480×375×515mm | 240mm | external calibration |
| FA1004B | 0-100g | 0.1mg | Φ80mm | 6.8kg | 350×215×340mm | 480×375×515mm | 240mm | external calibration |
| FA1104B | 0-110g | 0.1mg | Φ80mm | 6.8kg | 350×215×340mm | 480×375×515mm | 240mm | external calibration |
| FA1204B | 0-120g | 0.1mg | Φ80mm | 6.8kg | 350×215×340mm | 480×375×515mm | 240mm | external calibration |
| FA1604B | 0-160g | 0.1mg | Φ80mm | 6.8kg | 350×215×340mm | 480×375×515mm | 240mm | external calibration |
| FA2004B | 0-200g | 0.1mg | Φ80mm | 6.8kg | 350×215×340mm | 480×375×515mm | 240mm | external calibration |
| FA2204B | 0-220g | 0.1mg | Φ80mm | 6.8kg | 350×215×340mm | 480×375×515mm | 240mm | external calibration |
| FA2104B | 0-210g | 0.1mg | Φ80mm | 6.8kg | 350×215×340mm | 480×375×515mm | 240mm | external calibration |
| FA2104S | 0-60g 60-210g |
0.1mg/1mg | Φ80mm | 6.8kg | 350×215×340mm | 480×375×515mm | 240mm | external calibration |
JA series electronic precision balance
The JA series electronic precision balance is an electronic balance required for laboratory analysis or quality control. The balance has large weighing capacity and high accuracy, and can also meet the requirements of precision weighing in a poor environment. The balance has a built-in standard output port, which can be Link printers, computers and other equipment for on-site quality control.
Features
● It has multiple functions such as piece counting, unit conversion (metric carat, gold ounce, etc.), stability, full-scale tare, zero point tracking, etc., and the operation is more convenient and reliable.
● Built-in RS232C output interface, which can be directly connected to external devices such as computers and printers.
| model | Weighing range | Readability Accuracy | Pan size |
| JA10003 | 0-1000g | 1mg | Φ110mm |
| JA12002 | 0-1200g | 10mg | Φ160mm |
| JA21002 | 0-2100g | 10mg | Φ160mm |
| JA31002 | 0-3100g | 10mg | Φ160mm |
| JA21001 | 0-2100g | 100mg | Φ160mm |
| JA31001 | 0-3100g | 100mg | Φ160mm |
| JA41001 | 0-4100g | 100mg | Φ160mm |
| JA51001 | 0-5100g | 100mg | Φ160mm |
| JA61001 | 0-6100g | 100mg | Φ160mm |
JA-B series electronic precision balance
JA-B series electronic precision balance also adopts electromagnetic balance sensor, which has fast load-bearing response and is reliable. It has a novel appearance design, a wide variety of models, and excellent cost performance.
features
Humanized design, novel structure, five-sided fully transparent glass windshield. The new generation of electromagnetic balance weighing sensor is adopted to ensure the high precision of the product. With fully automatic fault detection, linear four-point calibration, overload protection and other applications.
The super large LCD with backlight makes the operator's vision softer and clearer.
The built-in type is called the suspension hook.
Function
It has many operation is more convenient and reliable.
Built-in RS232C interface, which can be directly connected to external devices such as computers and printers.
| model | Weighing range | Readability Accuracy | Pan size | net weight | Dimensions | Package size | work space height |
|---|---|---|---|---|---|---|---|
| JA1003B | 0-100g | 1mg | Φ80mm | 6.8kg | 350×215×340mm | 480×375×515mm | 240mm |
| JA1203B | 0-120g | 1mg | Φ80mm | 6.8kg | 350×215×340mm | 480×375×515mm | 240mm |
| JA2003B | 0-200g | 1mg | Φ80mm | 6.8kg | 350×215×340mm | 480×375×515mm | 240mm |
| JA3003B | 0-300g | 1mg | Φ80mm | 6.8kg | 350×215×340mm | 480×375×515mm | 240mm |
| JA4103B | 0-410g | 1mg | Φ110mm | 6.8kg | 350×215×340mm | 480×375×515mm | 240mm |
| JA5003B | 0-500g | 1mg | Φ110mm | 6.8kg | 350×215×340mm | 480×375×515mm | 240mm |
