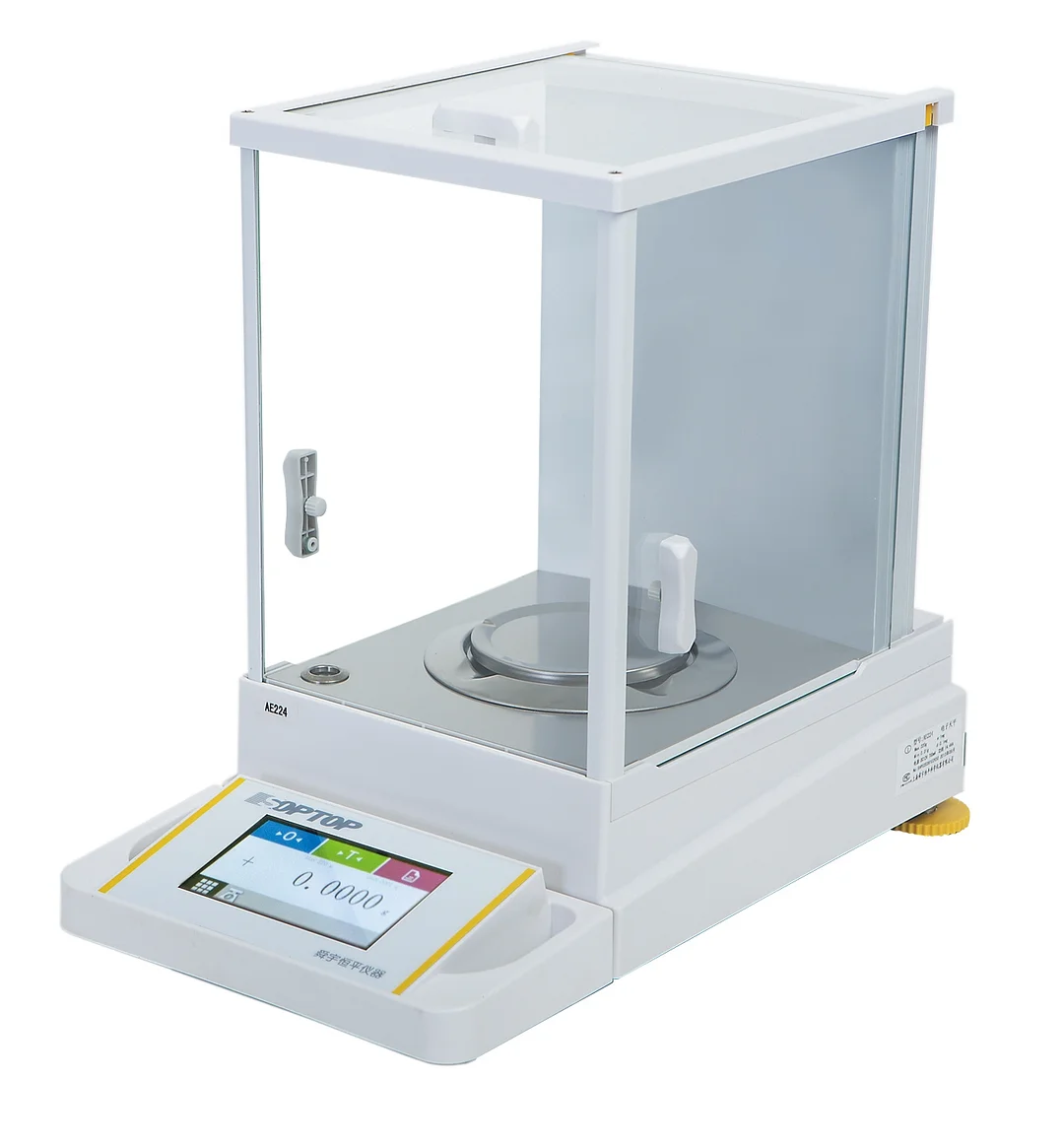

AE Touch Color Screen Electronic Analytic Balance
1. Big color screen: Large screen, TFT LCD monitor, provide abundant weighing display information, convenient to read.
2. Full screen touch: in line with the laboratory touch solutions for work habits, even wear gloves more pieces, it can be operated.
3. User interface: application of Metro color scheme, using the green color, the eye won’t tired long for long time work.
4. User operation: abundant operation information tips, help users to finish the work more efficient.
5. The built-in programs: the standard for easy to use the built-in applications, for all kinds of weighing task.
6. Screen protective cover: provide additional dustproof and stroke prevention; prolong the service life of balance
7. The glass door transportation protection lock: effective provide balance protection of transportation.
8. The overload protection scale: the unique structure design can effectively protect the sensor.
9. Level regulating system and level indicator: fit ergonomic level regulating system and leading level indicator, convenient user level adjustment.
10. Unit conversion: fast unit conversion makes the operation more convenient, clear and intuitive.
|
Model |
|
AE124 |
AE224 |
AE223 |
AE323 |
AE523 |
|
Actual Scale Interval |
g |
0.0001 |
0.0001 |
0.001 |
0.001 |
0.001 |
|
Weighing Capacity |
g |
120 |
220 |
220 |
320 |
520 |
|
Repeatability |
g |
0.0001 |
0.0001 |
0.001 |
0.001 |
0.001 |
|
Calibration weights |
g |
100 |
200 |
200 |
200 |
500 |
|
Type |
|
External Calibration |
||||
|
Dimension |
mm |
365×223×338 |
||||
|
Packing Measurement |
mm |
500×310×450 |
||||
|
Pan Size |
mm |
Ф90 |
||||
|
Wind Shield Effective Volume |
mm |
160×165×200 |
||||
|
Net Weight |
Kg |
5.5 |
||||
|
Gross Weight |
Kg |
7.5 |
||||
|
Model |
|
AE124C |
AE224C |
AE223C |
AE323C |
AE523C |
|
Actual Scale Interval |
g |
0.0001 |
0.0001 |
0.001 |
0.001 |
0.001 |
|
Weighing Capacity |
g |
120 |
220 |
220 |
320 |
520 |
|
Repeatability |
g |
0.0001 |
0.0001 |
0.001 |
0.001 |
0.001 |
|
Calibration weights |
g |
100 |
200 |
200 |
200 |
500 |
|
Type |
|
Internal Calibration |
||||
|
Dimension |
mm |
365×223×338 |
||||
|
Packing Measurement |
mm |
500×310×450 |
||||
|
Pan Size |
mm |
Ф90 |
||||
|
Wind Shield Effective Volume |
mm |
160×165×200 |
||||
|
Net Weight |
Kg |
5.5 |
||||
|
Gross Weight |
Kg |
8 |
||||
FA Electronic Analytical Balance
l Modular electromagnetic force sensor
l Weighing range indicate, white light LCD display
l High sensitivity light touch buttons
l Under hook recessed
l The glass door lock to protecting transportation
l RS232 interface module, USB interface optional, built-in clock
l Independent “Tare” and “zero” bottom, two-way communication
l Four level shockproof
l Dynamic temperature compensation
l Weighing speed adjustable, showing way adjustable
l Zero in range ability
l Automatic trouble diagnosis, Over-loading protection
l Unit conversion (g / oz / ct / kg / lb)
|
|
FA324 |
FA224 |
FA1004 |
FA1104 |
FA1604 |
FA2004 |
FA2104 |
FA2104S |
|
Weighing Capacity（g） |
320 |
220 |
100 |
110 |
160 |
200 |
210 |
60/210 |
|
Readability(mg) |
0.1 |
0.1 |
0.1 |
0.1 |
0.1 |
0.1 |
0.1 |
0.1/1 |
|
Repeatability(≤mg) |
±0.1 |
±0.1 |
±0.1 |
±0.1 |
±0.1 |
±0.1 |
±0.1 |
±0.1/±1 |
|
Linearity(≤mg) |
±0.2 |
±0.2 |
±0.2 |
±0.2 |
±0.2 |
±0.2 |
±0.2 |
±0.2/±2 |
|
Pan Size( mm） |
Ф90 |
Ф90 |
Ф90 |
Ф90 |
Ф90 |
Ф90 |
Ф90 |
Ф90 |
|
Gross Weight( kg) |
7.5 |
|||||||
|
Net Weight (kg) |
5.5 |
|||||||
|
Dimension（mm） |
365×223×338 |
|||||||
|
Packing Measurement (mm) |
500×310×450 |
|||||||
FB Auto Internal Calibration Electronic Analytical Balance
l Internal calibration
l Modular electromagnetic force sensor
l Weighing range indicat, white light LCD display
l High sensitivity light touch buttons
l Under hook recessed
l The glass door lock to protecting transportation
l RS232 interface module, USB interface optional, built-in clock
l Independent “Tare”and “zero” buttom, two-way communication
l Four level shockproof
l Dynamic temperature compensation
l Weighing speed adjustable, showing way adjustable
l Zero in range ability
l Automatic trouble diagnosis, Over-loading protection
l Unit conversion (g / oz / ct / kg / lb)
|
|
FB124 |
FB224 |
FB223 |
FB323 |
FB423 |
|
Weighing Capacity（g） |
120 |
220 |
220 |
320 |
420 |
|
Readability(mg) |
0.1 |
0.1 |
1 |
1 |
1 |
|
Repeatability(≤mg) |
±0.1 |
±0.1 |
±1 |
±1 |
±1 |
|
Linearity(≤mg) |
±0.2 |
±0.2 |
±2 |
±2 |
±2 |
|
Pan Size( mm） |
Ф90 |
Ф90 |
Ф90 |
Ф90 |
Ф90 |
|
Gross Weight( kg) |
8 |
||||
|
Net Weight (kg) |
6 |
||||
|
Dimension（mm） |
365×223×338 |
||||
|
Packing Measurement (mm) |
500×310×450 |
||||
JA Electronic Precision Balance
l Modular electromagnetic force sensor
l Weighing range indicate, white light LCD display
l High sensitivity light touch buttons
l Under hook recessed
l The glass door lock to protecting transportation
l RS232 interface module, USB interface optional, built-in clock
l Independent “Tare” and “zero” bottom, two-way communication
l Four level shockproof
l Dynamic temperature compensation
l Weighing speed adjustable, showing way adjustable
l Zero in range ability
|
|
JA1003 |
JA2003 |
JA3003 |
JA4103 |
JA5003 |
JA6203 |
|
Weighing Capacity（g） |
100 |
200 |
300 |
410 |
500 |
620 |
|
Readability(g) |
0.001 |
0.001 |
0.001 |
0.001 |
0.001 |
0.001 |
|
Repeatability(≤g) |
±0.001 |
±0.001 |
±0.001 |
±0.001 |
±0.001 |
±0.001 |
|
Linearity(≤g) |
±0.002 |
±0.002 |
±0.002 |
±0.002 |
±0.002 |
±0.002 |
|
Pan Size（mm） |
Ф90 |
Ф90 |
Ф90 |
Ф90 |
Ф90 |
|
|
Gross Weight( kg) |
8 |
|||||
|
Net Weight (kg) |
6 |
|||||
|
Dimension（mm） |
365×223×338 |
|||||
|
Packing Measurement (mm) |
500×310×450 |
|||||
